High Power Electrical Winch Drum With spooling device Can Be Customizable
Winch With Spooling Device
Electric winch is widely used in heavy work and large traction required. The motor of the single-drum electric winch drives the drum through the reducer, and a brake is arranged between the motor and the input shaft of the reducer. In order to meet the needs of lifting traction and rotary operations, there are double and multiple reel winches
Product Equipment
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.
Technical Parameters
| No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
| 1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
| 2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
| 3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
| 4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
| 5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
| 6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
Overview
| Product name | Winch Wth Spooling Device |
| Drum Quantity | Single Or Double |
| Drum Design | LBS Groove Or Spiral Groove |
| Material | Carbon Stainless And Alloy Steels |
| Size | Customization |
| Application Range | Construction Mining Terminal operation |
| Power Source | Electric and hydraulic |
| Rope Capacity | 100~300M |
Product Features:
1. Steel Wire rope electric winch with spooling system
2. Automatic rope arrangement can be realized
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes
5. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable
Spooling device:
1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.
Drive principle:
Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.
Product Tags:
|
|

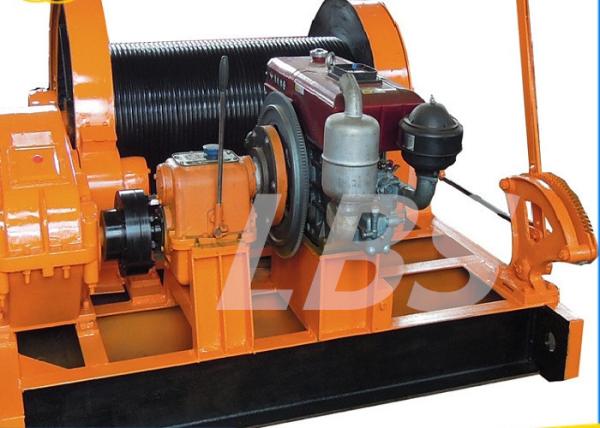

High Power 60 Ton Winch With Spooling Device Custruction Use Images
|
